Tractors with front steering
Four wheel drive

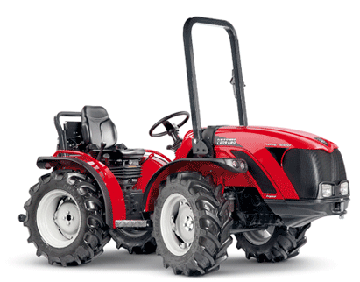

| TIGRE II |
TIGRE II 4000 0154212300 |
| ENGINE | Yanmar-Tier 3A |
| Cylinders | 3 |
| Power | 22.8 kW / 31 hp |
| Cooling | water |
| TRANSMISSION | |
| Gearbox | 8 fwd + 4 rev |
| PTO | 540 RPM+sync |
| HYDRAULIC SYSTEM | |
| Power lift | hydraulic, 3 pt |
| Towing device | front/rear |
| BRAKES | rear axle and parking handbrake |
| DIMENSIONS AND WEIGHTS | |
| Minimum external width (with tires 6.50-16) | 41.5 in |
| Weight | 2315 lb |
| TIRES | |
| Front (adjustable rims) | 7.50-16 |
| Rear (adjustable rims) | 7.50-16 |
| Model / Options | Description | Price | Total |
|---|---|---|---|
| TIGRE II 4000 | 4WD, 31HP, 540 PTO, (7.50-16 front/rear tires) -- NO LONGER ORDER-ABLE, MUST SELL MGH CONSIGNED CONFIGURATIONS -- | $18,872 | $18,872 |
| US Pricing Additive from Italy | $322 | $0 | |
| Less tires and wheels | $0 | $0 | |
| 6.50-16 (adjustable rims) | $138 | $0 | |
| 240/70-15 | $564 | $0 | |
| 29x12.50-15 Terra STG+ wing widening | $678 | $0 | |
| 29x12.50-15 Garden + wing widening | $851 | $0 | |
| 260/70 R16 + wing widening | $690 | $0 | |
| Hydraulic system with 1 double acting control valve, with floating position. (2 rear quick couplings) For Tigre 4000 II | $253 | $0 | |
| Hydraulic system with 1 double acting control valve, with floating position. (2 rear quick couplings) plus flow control for 3 point drop - For Tigre 4000 II | $334 | $0 | |
| Hydraulic system with 2 double-acting distributors, one of which with floating position (4 rear quick couplings) | $299 | $0 | |
| Air Suspension Seat | $253 | $0 | |
| Steering Brakes | $126 | $0 | |
| Rear revolving working light Non Cab | $126 | $0 | |
| Pair of 16" front wheel ballasts (79lbs each) | $391 | $0 | |
| Pair of 16" rear wheel ballasts (79lbs each) | $414 | $0 | |
| Pair of 15" front wheel ballasts-Terra STG, Xtra-Traction and PD1 (44 lbs each) | $288 | $0 | |
| Pair of 15" rear wheel ballasts-Terra STG, Xtra-Traction and PD1 (44 lbs each) | $242 | $0 | |
| Front power lift. (engine side) with A frame coupling and auxillary hydraulics consisting of 1 double acting valve with float, 1 double acting valve for front, front and rear drop flow controls. 4 quick couplers on rear and 2 front. For Tigre 4000 II | $2,093 | $0 | |
| Independent Oil PTO clutch | $908 | $0 | |
| $943 | $0 | ||
| $0 | $0 | ||
| Subtotal Carraro List Price | $18,872 | ||
| Less 20% Dealer Discount | ($3,774) | ||
| Tractor Total | $15,098 | ||
| Dealer Cost | $15,097.60 | ||
| $0 | |||
| Customer Total Selling Price | $15,097.60 | ||
|
|
|||
|
Dealer Info:
Salesman Info:
|
|||
Antonio Carraro S.p.A. (hereinafter A. Carraro) is an industrial company operating in the production and sale of tractors, machinery and equipment for agriculture and the environment.
All A.Carraro products are guaranteed free from manufacturing and/or assembly defects and fit for their intended purpose.
The terms of the warranty, which is normally 24 months for products in stock at the Dealership (commencing from the date of the invoice), 24 months from the moment of handover to the end customer or a maximum of 2000 operating hours, whichever comes first, are indicated in the general conditions of warranty in the handover certificate and in any case are no greater than the general terms indicated above. If the vehicles are not sold by the dealership prior to expiry of the 24 month period, the warranty shall be automatically activated at the dealership and the 24 month warranty shall commence from that moment.
Any repair and/or replacement operations carried out during the warranty period shall not affect the expiration date of the warranty.
- The warranty issued by A. Carraro governs the manufacturer's obligations towards the Dealership, which, in turn, is responsible for the provision of services under warranty to the end customer. The Dealership shall be responsible to its own customers for fulfillment of the warranty and is therefore responsible for effecting any repair or replacement operations under warranty on its own responsibility and at its own expense.
- The Dealership is obliged to organize a suitable repair workshop with suitable equipment, up-to-date technical documentation and the specific tools indicated by A Carraro Technical Assistance Service, in accordance with the number of products sold and in operation within its territory.
- The Dealership shall send at its own expense its own technical personnel to the A. Carraro technical training centre for a period of training at least one a year, in accordance with the various training modules proposed. In the event of failure to attend after-sales training courses, in cases where specialized personnel of A. Carraro are required for the repair of vehicles under warranty, the A. Carraro Technical Assistance Service shall not accept any liability for the cost of labour provided by the dealership and shall instead consider whether to charge the cost to the dealership.
- The Dealership is obliged to sell and install on A. Carraro products exclusively original parts supplied directly by A. Carraro, otherwise the warranty shall be deemed invalid. ACTIVATION OF THE WARRANTY The date on which the end customer warranty cover commences shall be the handover date indicated in the handover certificate.
The date on which the end customer warranty cover commences shall be the handover date indicated in the handover certificate.
The handover certificate issued by the Dealership to the purchaser at the moment of product handover establishes the period of time for which the warranty is valid. With consignment of the handover certificate, A. Carraro and the Dealership confirm that they have provided the customer with information regarding the correct use of the product.
At the time of product handover, the Dealership is invited to carry out the checks and registration operations reported on the handover certificate (pre-delivery operations).
The Dealership must complete the registration procedures on the B2B portal of the handover certificate (http://b2b.antoniocarraro.it) and also complete the other forms required (marketing and pre-delivery sheets). The delivery certificate must be printed, signed by the customer and sent in its original form to A Carraro After-Sales Service in the original form no later than 60 days after the date of registration. A copy of this certificate must be given to the end customer.
In the case of failure to send the Delivery Certificate within the specified term (which is mandatory), the warranty shall not be activated and the Dealership shall personally be responsible for the fulfillment of the warranty obligations to its own customers.
The use of A Carraro products by the Dealership (for example, use of machines to test drives and/or demonstrations) is deemed as the start of the warranty period, and therefore warranty activation procedure must be followed.
During the warranty period, the scheduled service operations must be observed, in strict accordance with the indications of the manufacturer and carried out at an authorized dealership, otherwise the warranty shall be deemed null and void. The scheduled services are to recorded on the b2b portal (http://b2b.antoniocarraro.it) in order to validate the warranty, otherwise any claims under warranty shall be rejected. Services must also be recorded in the service booklet supplied to the customer.
All A Carraro and components and products are covered by warranty.
The following items are excluded from warranty cover:
- Used parts and products, including those produced by A. Carraro.
- Parts not produced by A. Carraro which are instead covered by the warranty policy of the respective manufacturer, such as tyres and engines (excluding those produced by Yanmar, Kubota and VM which are warranted directly by A. Carraro). The Dealership is therefore required to activate, where applicable, the warranties on all such products. The warranty is therefore not activated at the same time as the sending of the handover certificate for the A Carraro product.
Excluded from warranty cover are any A Carraro products which, in the judgment of A Carraro, are:
- Damaged through improper use, accidents, other hazards, negligence, or use over the prescribed operating capacities;
- Fitted with any equipment or accessories which prevent correct operation;
- Damaged through lack of normal maintenance;
- Fitted with non-original A. Carraro parts;
- Damaged through repair and/or maintenance carried out without observing the specific instructions provided by A. Carraro;
- Repaired with non-original or used parts. The warranty does not cover consumables or material subject normal wear and tear (if original lubricants purchased from A. Carraro Parts Service are not used) and the following components if subject to normal wear and tear: filters, drive belts and chains, brake components, clutch components, bulbs, fuses, brushes, hydraulic control valves, hydrostatic units, hydraulic pumps, glass, light units, grass cutter blades and suction pipes. Damage sustained during product transport is excluded from the warranty. Should any fault or damage to complete functional assemblies be found during the warranty period (such as for example, hydrostatic units, complete solenoid valve blocks, engines) the dealership must contact A Carraro After-sales Service before dismantling or replacing any components of the assembly.
- All costs sustained for the transport/transfer from or to the place of repair are not reimbursable
- Any financial losses sustained as a result of an inability to use the product shall not be reimbursable under warranty.
- A. Carraro shall accept no liability, whether direct or indirect, for losses incurred as a result of damage of any type or nature.
To make a claim under warranty, complete the on-line form on the B2B portal (http://b2b.antoniocarraro.it). Claims under warranty must be sent within 60 days of the date of the damage and within 30 days of the date of repair. Claims sent after this period will be obligatorily rejected and must not in any circumstances be submitted. As regards materials for repairs under warranty, if not already in stock at the dealership, they can be ordered from A Carraro Parts Service as a "Warranty-Urgent" order.
A. Carraro undertakes to reimburse the Dealership in accordance with the conditions stipulated for ”Warranty-Urgent” order (list price less 20%) for parts used, provided that these are ordered using this order type, and for labour at the rate agreed with the Dealership.
NB: if the claim under warranty sent includes material not purchased with an “Warranty-Urgent” order but nonetheless purchased from A. Carraro, this will be reimbursed under the terms for a “stock replenishment” order (standard) in effect with the dealership.
In the event of doubt of whether a case of damage is covered under the warranty, the Dealership should proceed as described in the most appropriate of the two cases described below:
The warranty procedure does not require that parts replaced during the repair operation are shipped to A Carraro; however, these parts should be retained by the Dealership so they are available for possible inspection by the After-sales inspector from A Carraro Technical Assistance Service on the occasion of the first convenient visit to the Dealership and in any case for a period of 90 days from the sending of the warranty claim. These parts must also be identifiable and traceable by both the warranty claim number and the product serial number.
Any damaged material sent to the Technical Assistance Service, unless requested by A Carraro, shall not be accepted and shall be returned to he sender.
Following presentation of the warranty claim form, A Carraro Technical Assistance Service shall communicate its response to the Dealership via a "PDF" document sent to the e-mail address provided by the Dealership. A copy of this document is available on the B2B portal (http://b2b.antoniocarraro.it).
Reimbursement of the claim shall follow, in accordance with the usual procedure established with the Dealership.
The judgment of A Carraro Technical Assistance Service shall be final.
- The replacement or repair under warranty of components that have been found to be defective and of the product and other parts damaged as a result of this defect.
- To provide an estimate of cost for any components required for the repair which are not covered by the warranty.
The dealership undertakes to adhere to the following procedures and conditions:
The dealership undertakes:
All warranty claims must be submitted using the above mentioned form otherwise they will be rejected.
All warranty claim forms that are not completed fully or are unclear will automatically be rejected.
***For any legal dispute, the competent court shall be exclusively the court of Padova.***
***A.CARRARO S.p.A. reserves the right to modify the“General conditions of warranty” at any time without prior notice.***
***This document is confidential; if you have received it in error, please delete/destroy it in accordance with the Personal Data Protection Code, Legislative Decree no. 196 of 30 June 2003 ***
Extended warranty applicable to the entire Antonio Carraro range
Contents:
Part 1: Extended warranty “EXG1-24+12" (only for customers who purchase the extended warranty package);
Part 2: Extended warranty “EXG2-24+24" (only for customers who purchase the extended warranty package).
NB: The extended warranty is always invoiced through the dealership nearest to the customer.
Antonio Carraro S.p.A. (hereinafter A. Carraro) guarantees the product and its component parts for an additional period of 12 (twelve) months or a maximum of 3000 operating hours for end customers who purchase the extended warranty “EXG1-24+12” provided that the machine, if already in the possession of the customer, is still within the first warranty period of 24 months from the time of purchase.
For the duration of the warranty period A. Carraro undertakes, acting through its own authorized service centres and those of its agents, to replace free of charge any parts found to be defective as a result of verified manufacturing or material defects, provided that the scheduled services have been carried out in accordance with the indications of A. Carraro (see portal B2B http://b2b.antoniocarraro.it). The replacement and repair operations shall be performed in the shortest time possible, in accordance with the capabilities of the Dealership.
On purchase of the package “EXG1-24+12” A. Carraro extends the general conditions of warranty for a further 12 months from the expiration date of the original 24 month warranty or up to maximum of 3000 operating hours.
It is possible to purchase the extended warranty package “EXG1-24+12”:
The following are excluded from the extended warranty:
In addition, any financial losses resulting from the inability to use the product are not reimbursable under warranty.
A. Carraro shall accept no liability, whether direct or indirect, for losses incurred as a result of damage of any type or nature.
Antonio Carraro S.p.A. (hereinafter A. Carraro) guarantees the product and its component parts for an additional period of 24 (twenty-four) months or a maximum of 4000 operating hours for end customers who purchase the extended warranty “EXG2-24+24”, provided that the machine, if already in the possession of the customer, is still within the first warranty period of 24 months from the time of purchase.
For the duration of the warranty period A. Carraro undertakes, acting through its own authorized service centres and those of its agents, to replace free of charge any parts found to be defective as a result of verified manufacturing or material defects, provided that the scheduled services have been carried out in accordance with the indications of A. Carraro (see portal B2B http://b2b.antoniocarraro.it). The replacement and repair operations shall be performed in the shortest time possible, in accordance with the capabilities of the Dealership.
On purchase of the package “EXG2-24+24” A. Carraro extends the general conditions of warranty for a further 24 months from the expiration date of the original 24 month warranty or up to maximum of 4000 operating hours;
It is possible to purchase the extended warranty package “EXG2-24+24”:
The following are excluded from the 1st year of extend warranty or a maximum of 3000 operating hours:
The following are excluded from the 2nd year of extend warranty or a maximum of 4000 operating hours:
The electrical system (instruments, accessories and controls);
In addition, any financial losses resulting from the inability to use the product are not reimbursable under warranty.
A. Carraro shall accept no liability, whether direct or indirect, for losses incurred as a result of damage of any type or nature.
